Thermal Analysis Results Processor

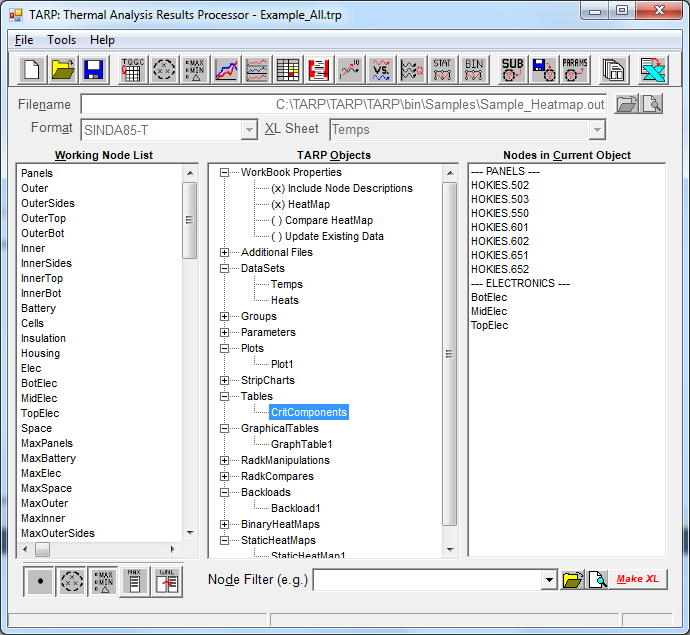

Thermal Analysis Results Processor (TARP) is a Windows® based tool for post-processing the output from various commercial thermal solvers. The user creates and defines various object types at the TARP Interface. These object are used to create a Microsoft Excel® output workbook containing the objects defined by the user. TARP features include:

An Intuitive, Easy to Use Windows Interface
DataSets: output worksheet containing raw output
Plots: representations of data vs. time
Tables: columns of specific timesteps of interest (Max, Min, etc)
Groups: collection of multiple nodes
Parameters: virtual nodes based on pre-defined functions (e.g. Max of Group)

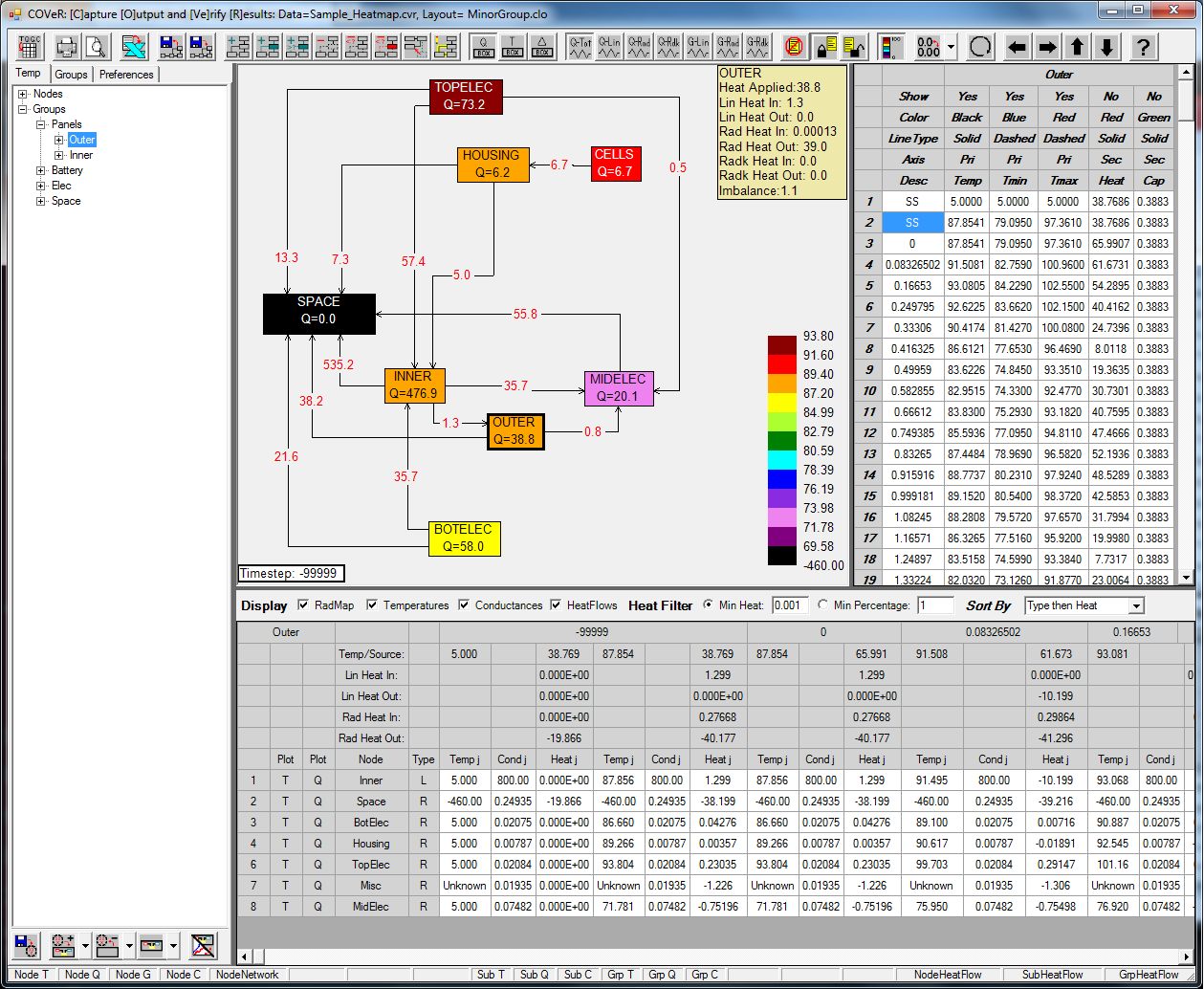

HeatMaps: specialize workbook containing macros to calculate heat flow between nodes and/or groups

TARP is available in two versions: TARP and TARP Pro with the latter also containing the additional object types listed below.

Graphical Tables: graphical display of temperature extrema vs. limits
RadkManipulations: collection of utilities to post-process Radk output
Backloads/EqSinks: simple representation of complex radiative environments
Binary HeatMaps: data storage file for HeatMaps used for improved performance

The program may be downloaded here but will only function in Demo model without a valid license file. Please contact tarpthermal@comcast.net for further information or if a trial license file is needed for evaluation purposes.
