- Backloads and Equivalent Sinks are methods for providing simplistic representations of complicated radiative interfaces for a subset of nodes/surfaces
- Backloads/EqSinks require (at a minimum) radiation couplings and temperature predictions from an integrated model
- Environmental heating rates may also be included in the calculations
- Calculate.
- Sigma and Toffset
- Numbering
- Nodes to calculate
- Using Files
- Radiation Coupling
- Temperature
- Heat Rates
- Output
- Validation
- Validation file displays all radiation couplings and their contribution to the calculations
- Estimation of Gray Body Sinks
- Constraint of Lowest Sink Temperature
- Calculation of T4 average
- Support for Group calculation of EqSinks weighted by RadkSum
Click Here to see Backload Input

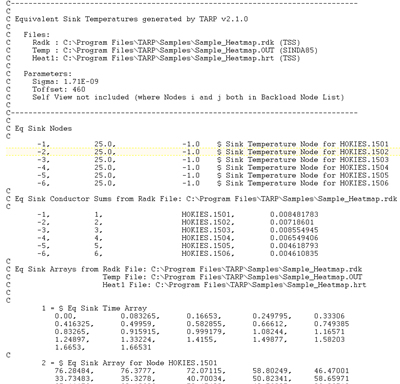

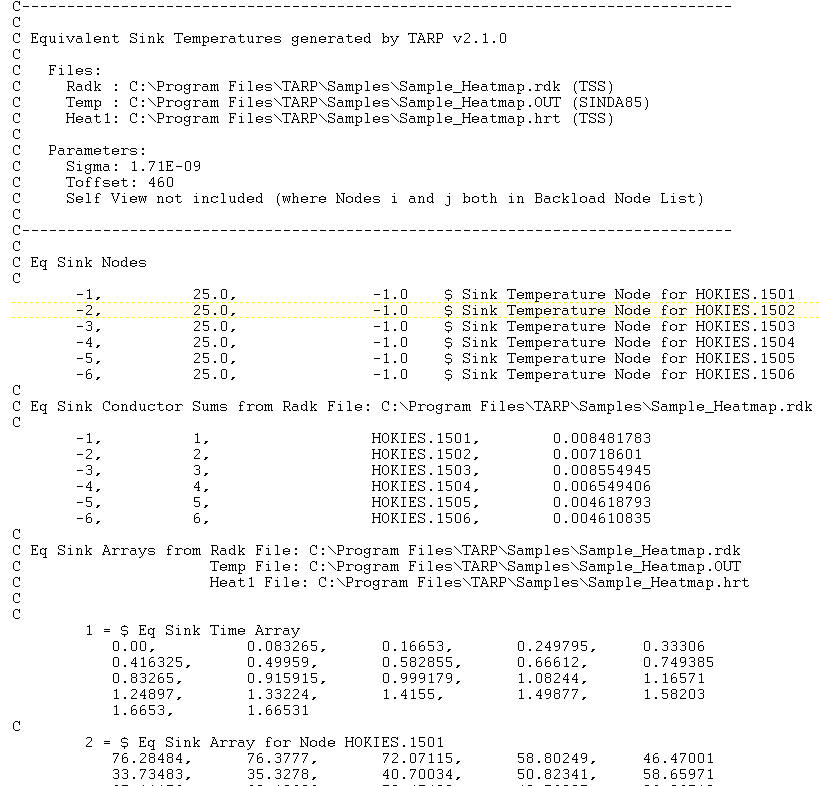

Click Here to see Backload Output
