• Provide Additional Points for Tabulation/Plotting
      - Average Temperature
      - Total Heat Load
• Nodes may be added explicitly or implicitly

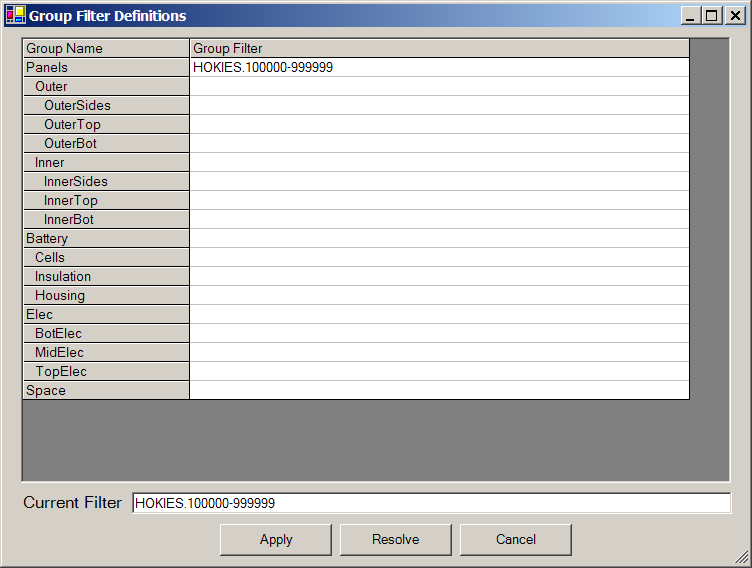

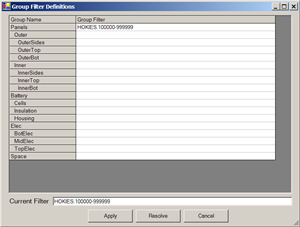

      - Group Filters process existing DataSets
         to determine which nodes are within specified
         range for inclusion in group
• May be loaded from file or created from submodels
• Very useful when combined with HeatMaps

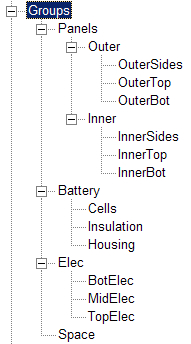

• Support up to 5 levels of sub-groups
• Temperatures for Groups based on Weighted Averages
• Option to allow TARP to calculate group values
      - Faster, but loses ability of formulas to recalculate
• May be modified in Excel Workbook
      - Move nodes from one group to another
      - Change Group Hierarchy
      - Save changes to external file which may be
         re-used in TARP GUI
      - Updates propagated throughout workbook
