Thermal Analysis Results Processor

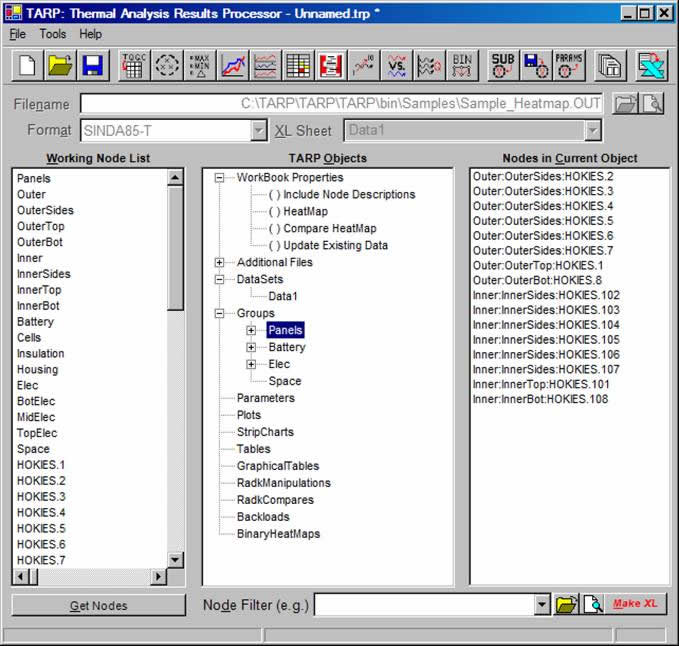

Main Interface

WorkBook Properties and Additional Files are defined
Objects are added to the TARP Objects tree
  - DataSets
  - Plots
  - Tables
  - Strip Charts
  - Graphical Tables (Pro)
  - Groups
  - Parameters
  - RadkManipulations (Pro)
  - Backloads/EqSinks (Pro)
  - Binary HeatMap Files (Pro)
Working Node List allows filtering to show node subsets of interest
- Nodes are added to Objects from the Working Node List
Nodes for selected object shown in Nodes in Current Object
Properties defined for each Object
Sessions may be saved/loaded
Support for Excel® 2003 and 2007
Output is a Microsoft Excel® Workbook containing Objects defined by the user at the TARP Main Interface
Specialized HeatMap options create Workbooks with embedded macros for the calculation of heat flow between nodes and/or groups
