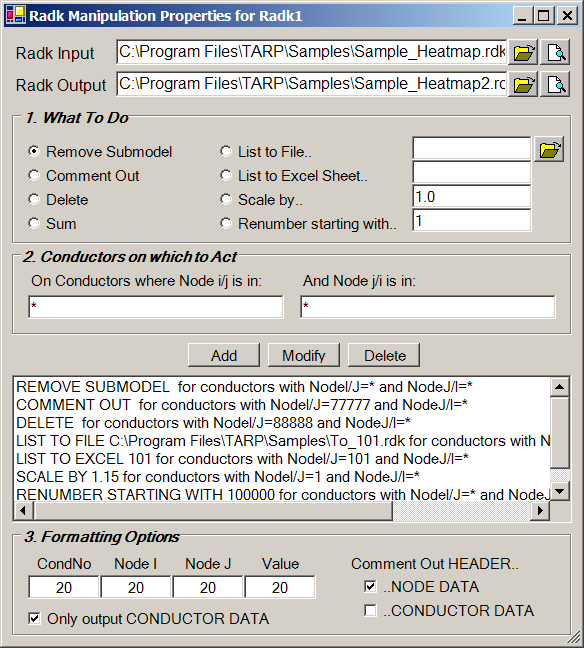

• Post Process Radiation Coupling Output from TSS or ThermalDesktop
• Query-Like Approach
      - Do some action
      - On a subset of conductors
      - And output as specified
• Actions
      - Remove Submodel
      - Comment or Delete
      - Sum
      - List to File or Excel Sheet
      - Scale
      - Renumber
• Conductor Specification
      - All Conductors
      - Connected to Node/Range I
      - Between Node/Range I and Node/Range J
• Formatting
      - Column widths
      - Constant vs. Varying
