• HeatMaps display heatflow through conductors between two Control Volumes
      - Node to Node
      - Node to Group
      - Group to Node
      - Group to Group
• Four levels of grouping
      - Major Group
      - Minor Group
      - Sub Group
      - Dynamic Group
• Heat Balance Summary
• Sorting, Filtering, and Formatting options
• Compare HeatMap option
• Option to disable calculations for Node to Group, Group to Group, etc.
      - conserve memory for large models

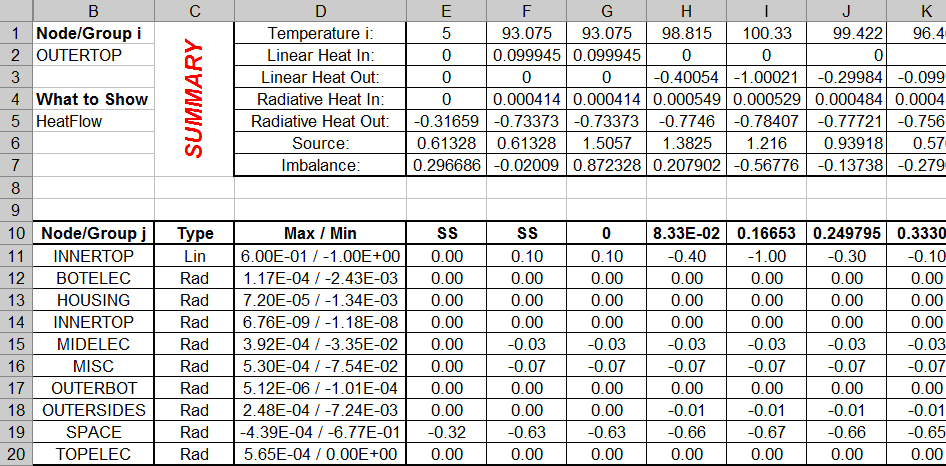

• Transient Heat Maps

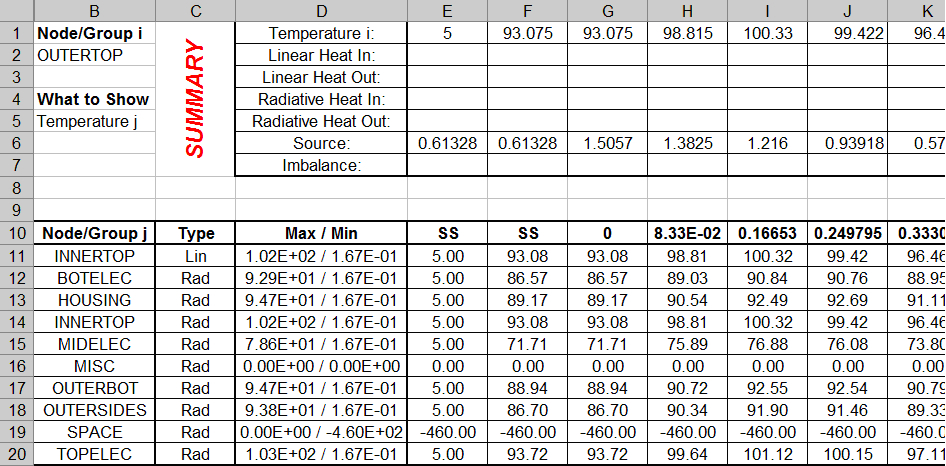

      - Display Temperature, HeatFlow, or Conductance
• Group to Group Heat Matrix
      - Display Total Heat, Linear Heat, Radiative Heat, Linear Conductance, or Radiative Conductance

Click to see Node-To- Output
Click to see Group-To- Output
Click to see Matrix Output
