Workbook Properties and Additional Files
WorkBook Properties allow the user to specify options for the creation of the workbook
- Include Node Descriptions: extracts description from input file for use in HeatMaps and Tables
- HeatMap and Compare HeatMap: create specialized workbook with embedded macros for determining heatflows between nodes/groups
- Update Existing Data: updates only data and no other objects. Useful for existing workbooks with significant modifications from TARP defaults
Additional Files may be needed depending on the TARP objects created
- Excel Output File: Output workbook created by TARP
- InputFile: input file including conductor pairings and node descriptions. Needed if HeatMaps or IncludeNodeDescriptions options are checked
- LimitFile: Comma separated file of node limits for use in Tables and Graphical Tables

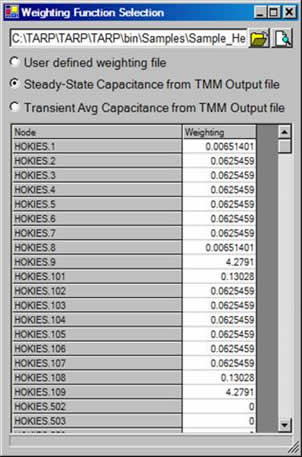

- WeightingFile: User Specified, Steady State Capacitance, Orbit Average Capacitance. Click here for a sample input screen.
- UnitConversionFile: user-modifiable file where conversion coefficients between units may be specified
