Thermal Analysis Results Processor

COVeR^TM Plotting allows the user to display transient data as an XY Plot. The data may include nodal or group values as well as heat flows.

COVeR^TM Plotting Grid

The following data may be plotted for Groups or Nodes:
  - Temperature
  - Max and Min Temperature (Groups Only)
  - Heat Load
  - Capacitance
  - Environmental Heat
  - Sink Temperature
  - Backload

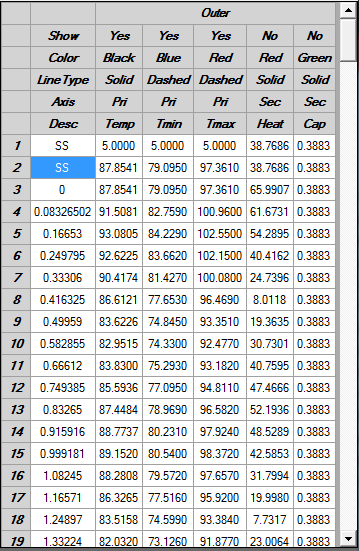

Plot Display properties are controlled by the Plot Data Grid
  - Visibility
  - Linestyle
  - Color
  - Axis
Specialized plot for Connectors which shows Heat Flow and Temperatures at each end
XY Value at cursor or Slope between points displayed in StatusBar
Window Zoom or Form to set Axes properties
Image can be saved to clipboard
