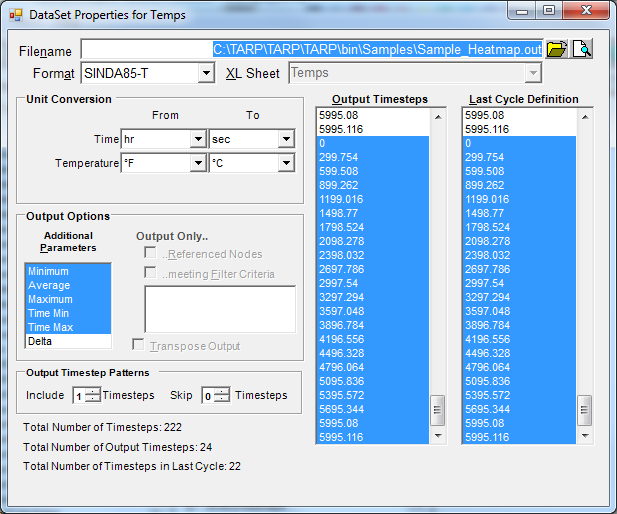

The DataSet Properties form allows the user to perform unit conversion, control the nodes and timesteps to be output, and to define the range over which to plot and tabulate maximum and minimum values.


TARPTM DataSets


  • Select File, Format, and Sheet Name
  • Convert Units
        - Time
        - Temperature
        - Heat
        - Area
        - Linear Conductance
        - Radiative Conductance
        - Capacitance
  • Control Node Output
        - All Nodes
        - Range of Nodes
        - Referenced Nodes
        - Transpose Output
  • Control Timestep Output
  • Define Last Cycle
        - Define Min, Max, Average over this range
        - Plots use this range for Time axis
