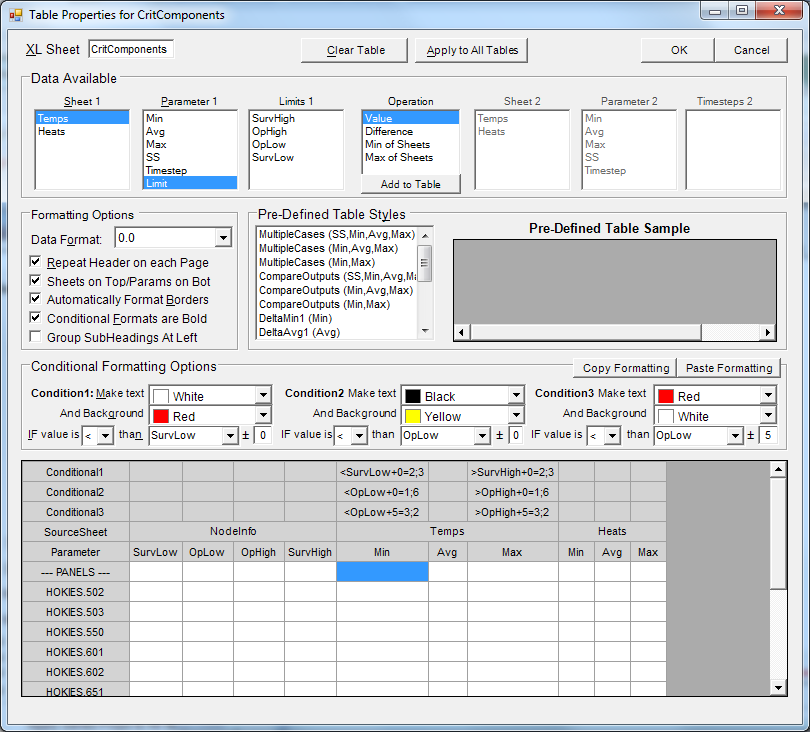

The Table Properties form allows the user to Auto Generate the columns, specify Column Properties, Apply Conditional Formatting based on Limits, and apply general formatting to the Table.


TARPTM Table


  • Select Column Type
        - Simple value
        - Difference
        - Max/Min of Sheets
  • Select Source Sheet(s)
  • Select Tabular Data
        - Minimum
        - Maximum
        - Average
        - Steady-State
        - Timestep
        - Limit
  • Conditional Formatting to Highlight Out-of-Limit Conditions
  • Formatting options for Table display
        - Data Formats
        - Border Formats
        - Common Parameter grouping
        - Table SubHeading display type
  • Predefined tables for quick creation
  • Apply formats to all Tables
Click Here to see Table Output
