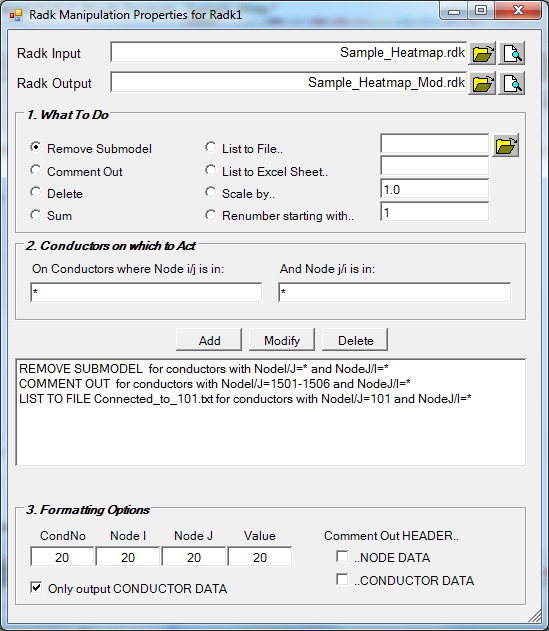

The RadkManipulation Properties form allows the user to specify Actions, Criteria, and Formatting Options for post-processing of Radk output files. Actions include: Comment, Delete, List, Add Multiplier, Sum, Renumber, etc.  The Criteria is based on meeting Node i and Node j specifications.  The output is a second ASCII file or possibly Worksheets in the Excel workbook.


TARPTM RadkManipulation


  • Post Process Radiation Coupling Output from TSS or ThermalDesktop
  • Query-Like Approach
        - Do some action
        - On a subset of conductors
        - And output as specified
  • Actions
        - Remove Submodel
        - Comment or Delete
        - Sum
        - List to File or Excel Sheet
        - Scale
        - Renumber
  • Conductor Specification
        - All Conductors
        - Connected to Node/Range I
        - Between Node/Range I and Node/Range J
  • Formatting
        - Column widths
        - Constant vs. Varying
Click Here to see RadkManipulation Output
