The Group Properties form allows the user to specify ranges of nodes to implicitly add to a Group.  Alternatively, nodes may be explicitly added to a Group at the Main Interface.

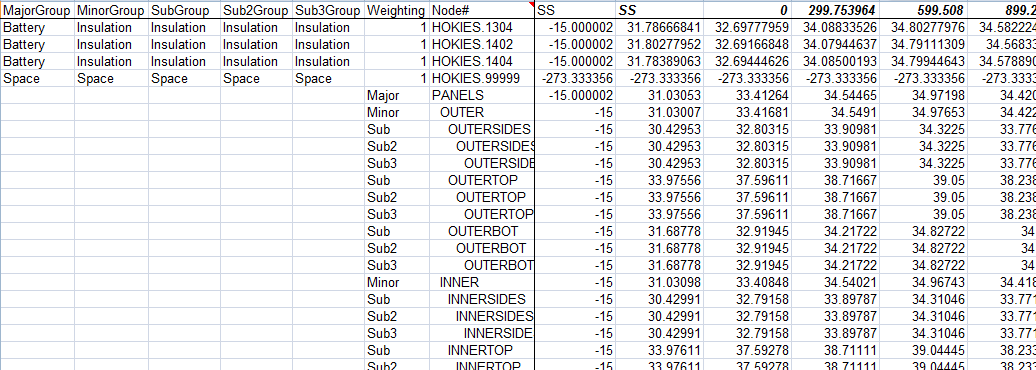

TARPTM Group Output


  • Provide Additional Points for Tabulation/Plotting
        - Average Temperature
        - Total Heat Load
        - Total Capacitance
  • Nodes may be added explicitly or implicitly
        - Group Filters process existing DataSets to determine which nodes are within specified range for inclusion in group
  • May be loaded from file or created from submodels
  • Very useful when combined with HeatMaps
  • Support up to 5 levels of sub-groups
  • Temperatures for Groups based on Weigthed Averages
  • Option to allow TARP to calculate group values
        - Faster, but loses ability of formulas to recalculate
Click Here to see Group Properties
