HeatMaps are a specialized workbook created by TARPTM to dynamically allow a user to investigate Heat Flows.  Specialized macros in the HeatMap workbook handle the calculation and display of the data requested by the user.  Extending the capabilities to Groups allows for various levels of heatflows to be investigated in a model.  Further options exist for Group to Group matrix output and transient output


TARPTM HeatMaps


  • HeatMaps display heatflow through conductors between two Control Volumes
        - Node to Node
        - Node to Group
        - Group to Node
        - Group to Group
  • Five levels of grouping
        - Major, Minor, Sub, Sub2, Sub3 Group
  • Heat Balance Summary
  • Sorting, Filtering, and Formatting options
  • Compare HeatMap option
  • Option to disable calculations for Node to Group, Group to Group, etc.
        - Conserve memory for large models
  • Transient Heat Maps
        - Display Temperature, HeatFlow, or Conductance
  • Group to Group Heat Matrix
        - Display Total Heat, Linear or Radiative Heat, Linear or Radiative Conductance

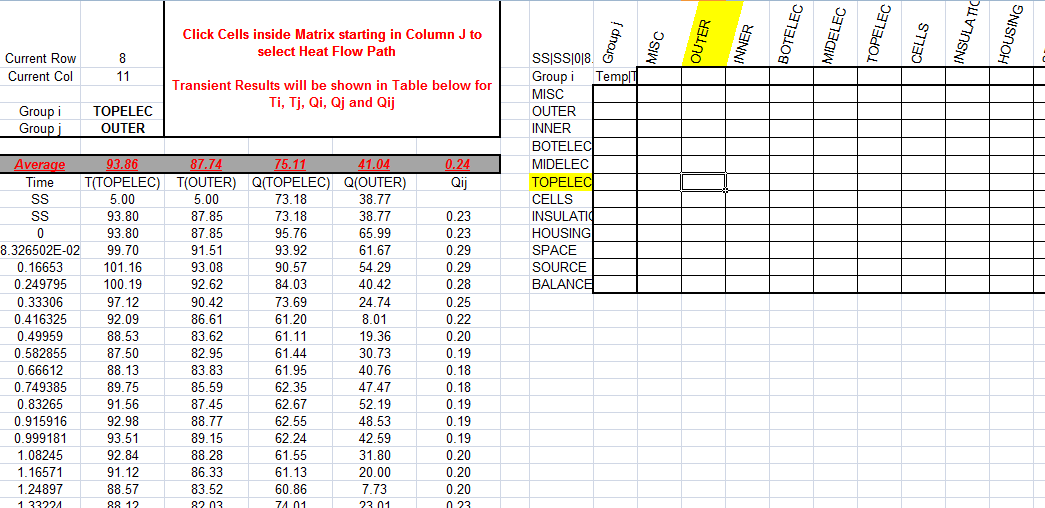

  • Group to Group Transient Matrix
