The RadkCompare Properties form allows the user to specify Threshold for relevant Radks to Compare as well as the Comparison Method.  The comparison is done based on node paiirs and not Conductor Number.  Radks above the threshold that appear in one file but not the other are listed as well as Radks that exceed the difference tolerances specified by the user.

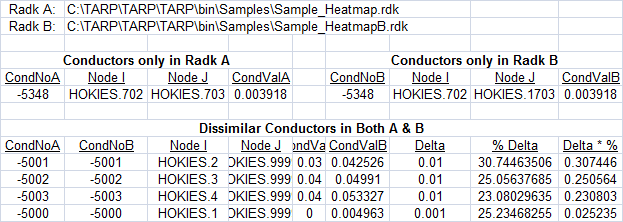

TARPTM RadkCompare Output


  • RadkCompares allows the comparison of two RadK output files by Node Pairings
  • Comparison output for Radks
    - Above minimum Radk value
    - with Delta Greater than Tolerance
    - with %Delta Greater than Tolerance
    - with Delta * %Delta Greater than Tolerance
  • Sort Options for Output
Click Here to see RadkCompare Properties
