The StripChart Properties form allows the user to specify Sub-chart, X-Axis values, and Series Properties for the StripChart.

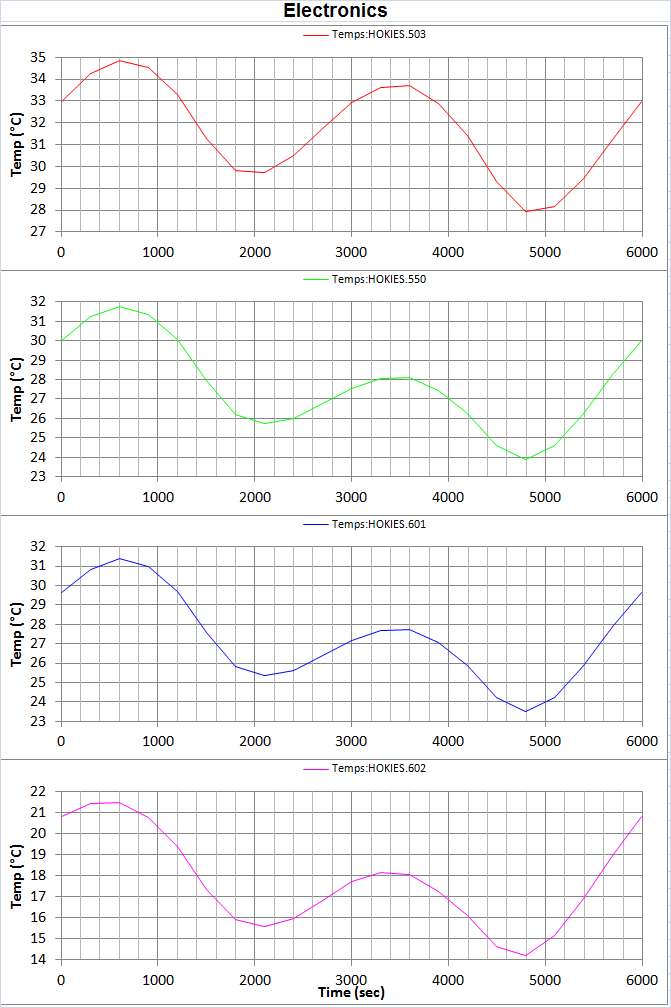

TARPTM StripChart Output


  • Strip Charts are combinations of stacked plots
        - Up to 6 Sub-Charts on one StripChart
        - Maximum of 3 series allowed per Sub-Chart
  • Control X-Axis properties:
        -Minimum
        -Maximum
        -Autoscaling Implemented for Default Max/Min
        -Major Division
        -Minor Division
  • Control Source Data and Sub-chart assignment
  • Control Line Properties:
        -LineType
        -Color
        -Weight
  • Control Marker Properties:
        -ForeColor
        -BackColor
        -MarkerType
        -Size
        -Shadow
        -Frequency
  • Apply formats to all StripCharts
Click Here to see StripChart Properties
