The Table Properties form allows the user to Auto Generate the columns, specify Column Properties, Apply Conditional Formatting based on Limits, and apply general formatting to the Table.

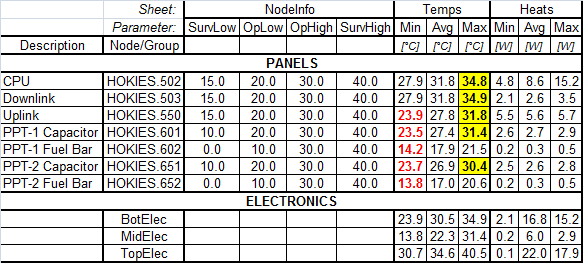

TARPTM Table Output


  • Select Column Type
        - Simple value
        - Difference
        - Max/Min of Sheets
  • Select Source Sheet(s)
  • Select Tabular Data
        - Minimum
        - Maximum
        - Average
        - Steady-State
        - Timestep
        - Limit
  • Conditional Formatting to Highlight Out-of-Limit Conditions
  • Formatting options for Table display
        - Data Formats
        - Border Formats
        - Common Parameter grouping
        - Table SubHeading display type
  • Predefined tables for quick creation
  • Apply formats to all Tables
Click Here to see Table Properties
